Cloud Security Baselining on Google Cloud: Architecture Framework Alignment, Open-Source IAP Proxy Guard, CodeMender, and the Conductor Blueprint

Cloud architecture rarely degrades through a single catastrophic misconfiguration. It drifts by a thousand tiny weekend conveniences: a temporary service account JSON key exported for a CI test, an unclustered audit log dataset quietly burning storage budget, a local development server bound to 0.0.0.0:8080, or an automated vulnerability scanner drowning in half a gigabyte of third-party virtual environment files.

Periodic Security Baselining is the discipline of stopping feature velocity just long enough to pull every layer of your stack back to a verifiable, zero-trust invariant—and then locking those invariants into a repeatable delivery methodology so drift never creeps back in.

This weekend’s engineering sprint tackled four concrete layers of public-cloud, open-source, and sovereign agentic hygiene:

1. Google Cloud Architecture Framework (Well-Architected Framework) Alignment across network segmentation, keyless identity, and BigQuery SecOps/FinOps telemetry.
2. Zero-Trust Identity-Aware Proxy (IAP) Enforcement—combining native Google Cloud Run IAP with a lightweight, open-source Python asyncio per-port reverse proxy guard for development hosts.
3. Autonomous Vulnerability Remediation with Google Cloud CodeMender—and the crucial discovery-scope lesson that pruned 28,189 indexed files (465.45 MB) down to 1,786 first-party source files (12.45 MB).
4. Sovereign Agentic Engineering with the Aether Builder Conductor Blueprint—codifying the 5 Canonical Tracks that turn one-off security fixes into self-diagnostic, GDC/PSC-ready, enterprise-grade open-source systems.

Here is the complete, open-source and public-cloud blueprint.

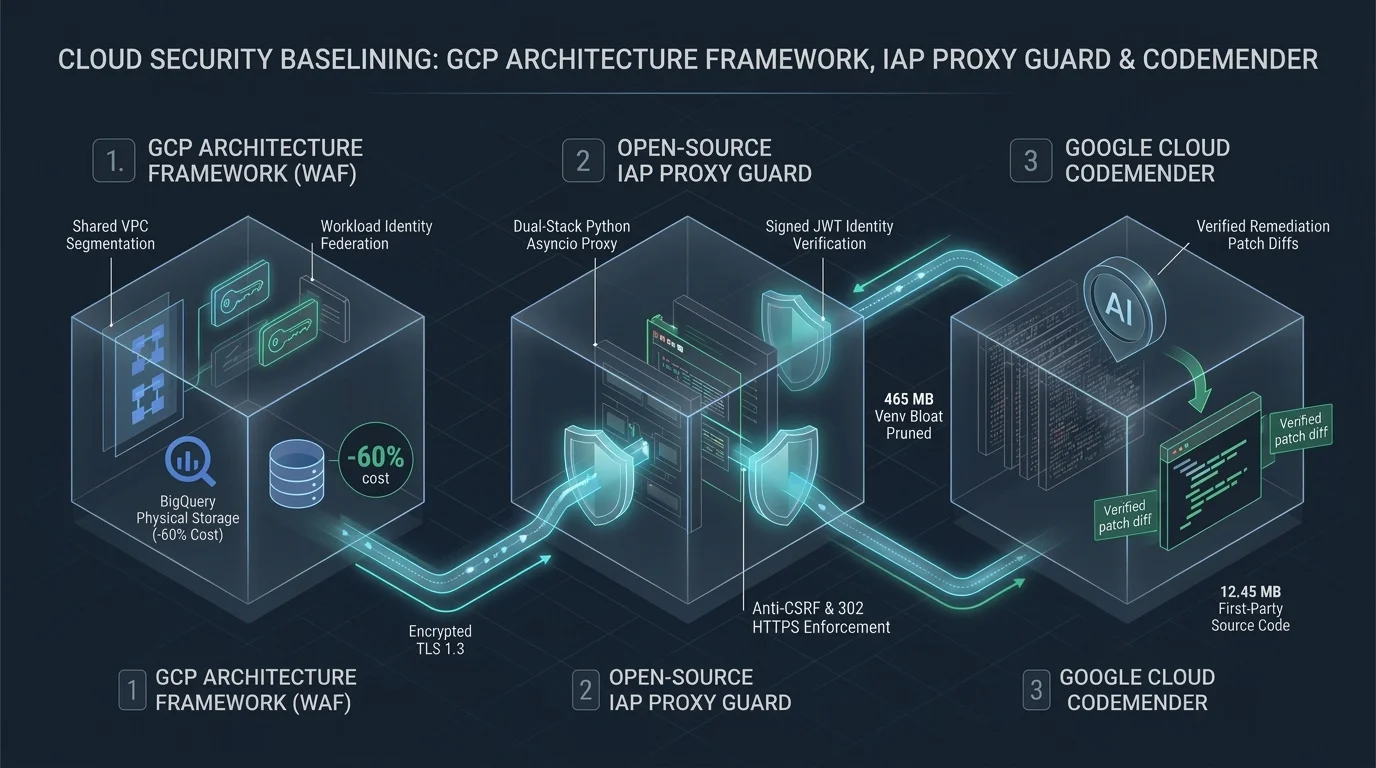

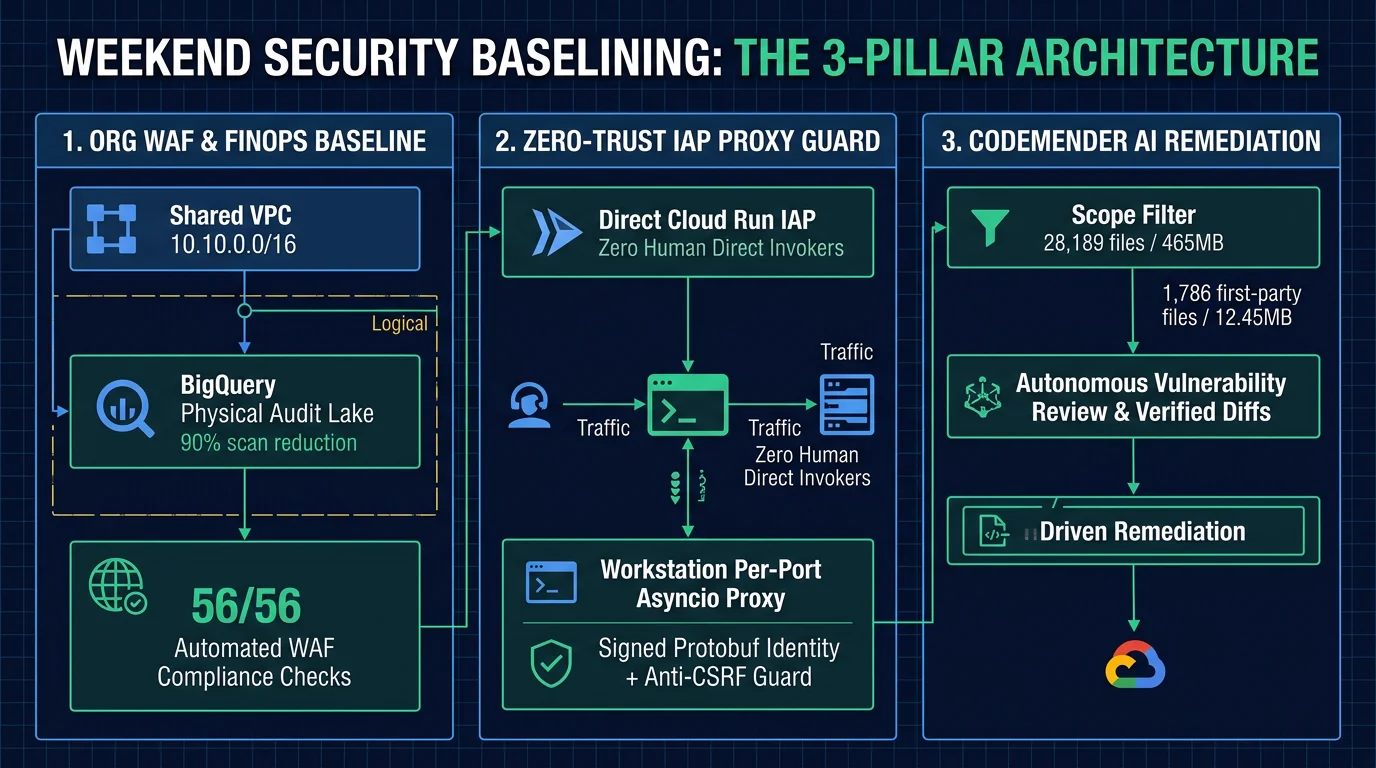

Architectural Overview: From Cloud Landing Zones to Sovereign Agentic Systems

If Beyond the Perimeter: Why IP Firewalls Fail Against 2026 Threats established why static IP allowlists are obsolete, this baseline translates that principle into concrete Google Cloud Platform (GCP) controls, open-source reverse proxies, autonomous code remediation, and spec-driven engineering tracks.

flowchart LR
    subgraph P1["1. GCP ARCHITECTURE FRAMEWORK"]
        direction TB
        VPC["Shared VPC 10.10.0.0/16<br/>Zero 0.0.0.0/0 · Single Cloud NAT"]
        AUDIT["BigQuery SecOps Lake<br/>PHYSICAL Billing (-60%) · Clustered"]
        WIF["Zero Static SA Keys<br/>Workload Identity Federation"]
        VPC --> AUDIT --> WIF
    end

    subgraph P2["2. OPEN-SOURCE IAP PROXY GUARD"]
        direction TB
        CRIAP["Direct Cloud Run IAP<br/>--iap · Zero Human Invokers"]
        LOCAL["Dual-Stack Python Asyncio Guard<br/>Signed JWT Assertion Check"]
        CSRF["Anti-CSRF & 302 Enforcer<br/>X-IAP-CSRF-Protection: 1"]
        CRIAP --> LOCAL --> CSRF
    end

    subgraph P3["3. GOOGLE CLOUD CODEMENDER"]
        direction TB
        RAW["Raw Scan: 28,189 Files (465 MB)<br/>Choked on venv & SDK Clones"]
        PRUNE["Pruned: 1,786 Files (12.45 MB)<br/>100% First-Party Source Code"]
        FIX["CodeMender Verified Patches<br/>Autonomous Vuln Remediation"]
        RAW --> PRUNE --> FIX
    end

    subgraph P4["4. CONDUCTOR BLUEPRINT (5 TRACKS)"]
        direction TB
        SPEC["Spec Contracts & Context Budget"]
        FSM["State Machines & Circuit Breakers"]
        SOV["GDC / PSC Sovereign Landing Zone"]
        SPEC --> FSM --> SOV
    end

    P1 ==> P2 ==> P3 ==> P4

Pillar 1: Aligning with the Google Cloud Architecture Framework

The Google Cloud Architecture Framework provides a rigorous blueprint across Security, Reliability, Cost Optimization, Operational Excellence, and Performance. For a multi-project GCP Organization, aligning to the framework comes down to three enforceable invariants: Protect, Control, and Audit.

1. Network Segmentation & Keyless Identity (Protect & Control)

• Folder Hierarchy Isolation: Strict separation between shared foundation infrastructure (common folder hosting the Shared VPC host project and central SecOps/FinOps hubs) and isolated application environments (workloads folder).
• Zero-Trust Shared VPC Topology: A single RFC 1918 supernet (10.10.0.0/16) partitioned into regional serverless and compute subnets with Private Google Access (PGA) enabled across all subnets, zero 0.0.0.0/0 VPC ingress rules, zero public VM external IPs, and a single deterministic outbound Cloud NAT IP for auditable egress.
• Eliminating Static Service Account Keys: Replaced remaining user-managed JSON service account keys in CI/CD runners with Workload Identity Federation (WIF). Short-lived OIDC token exchange eliminates long-lived static secrets entirely.

2. BigQuery SecOps Audit Lake Optimization (Comply & Audit Without the Storage Tax)

Aggregating organization-wide Cloud Audit Logs (admin_activity, data_access, and system_event) into a central BigQuery dataset is foundational for security forensics—but unoptimized log sinks quickly inflate cloud spend. Two configuration changes delivered immediate structural savings:

• Switching Datasets from LOGICAL to PHYSICAL Storage Billing: Cloud Audit Log JSON payloads compress exceptionally well (typically 4:1 to 6:1). Altering the dataset storage billing model (ALTER SCHEMA ... SET OPTIONS(storage_billing_model = 'PHYSICAL')) immediately reduced BigQuery storage costs by 50–70%.
• Partitioning & Multi-Column Clustering: Consolidated legacy date-sharded tables into ingestion-time partitioned tables clustered by serviceName, methodName, principalEmail. Incident response queries that previously scanned hundreds of gigabytes now prune >90% of scanned bytes and complete in under two seconds.

3. FinOps Guardrails & Automated Baseline Verification

Configured a 5-tier Cloud Billing budget alert pipeline (50%, 80%, 90%, 100%, 120% thresholds) streaming to Pub/Sub alongside Active Assist / Cloud Recommender views, surfacing over $20k/year in right-sizing opportunities across unattached persistent disks, idle IPs, and Cloud Run concurrency settings. Every control is continuously verified by a 56-check shell validation suite and a 24-point Architecture Framework scorecard.

Pillar 2: Zero-Trust Identity-Aware Proxy (IAP) — Cloud & Local Ports

Identity-Aware Proxy (IAP) shifts access control from the network layer to the application layer: every HTTP request must carry a cryptographically verifiable identity assertion before it reaches application code.

This weekend’s baseline closed unverified ingress across both managed Cloud Run services and local development ports.

1. Direct Cloud Run IAP Hardening

Google Cloud Run’s native IAP integration (--iap) allows serverless containers to enforce identity verification at the edge without deploying a separate load balancer stack:

1. Mandatory Edge Authentication: Every service deploys with --iap and --no-allow-unauthenticated.
2. Dedicated Service Agent Isolation: Only the Google-managed IAP service agent (service-<PROJECT_NUMBER>@gcp-sa-iap.iam.gserviceaccount.com) is granted roles/run.invoker on the Cloud Run service.
3. Zero Direct Human Invokers: Engineers and groups never hold roles/run.invoker directly on the underlying compute service; access is granted exclusively at the IAP policy layer via roles/iap.httpsResourceAccessor.
4. Custom OAuth 2.0 Clients for Cross-Domain Federation: Binding an explicit OAuth 2.0 client configuration avoids Error 403: org_internal blocks when authorizing external collaborators across Google Workspace domains.

2. Open-Source Python asyncio Per-Port Proxy Guard

While production cloud workloads sit behind IAP, developers routinely run local web servers, API previews, and observability dashboards on ports 3000, 4321, 8080, or 8888. Binding those ports to 0.0.0.0 without an authentication layer exposes local services to any host on the local network segment.

To enforce the same Zero-Trust model locally, we use a lightweight, open-source Python asyncio reverse proxy guard that sits in front of development ports:

• Dual-Stack Socket Binding: Listens across both IPv6 ([::]) and IPv4 (0.0.0.0) sockets with zero third-party runtime bloat.
• Cryptographic Identity Verification: Never trusts spoofable plaintext headers such as raw X-Goog-Authenticated-User-Email on unauthenticated sockets, and never falls back to the local OS user identity on network requests. Every request must present a valid, signed JWT assertion (X-Goog-IAP-JWT-Assertion) verified against public signing keys.
• Anti-CSRF Enforcement: State-mutating proxy endpoints require HTTP POST accompanied by an explicit custom header (X-IAP-CSRF-Protection: 1) and strict Same-Origin Sec-Fetch-Site validation.
• Automatic 302 Found HTTPS Upgrade: Unauthenticated plain-HTTP probes (http://<host>:<port>) receive an immediate 302 Found redirect to the authenticated HTTPS reverse proxy endpoint.
• Native Authenticated Daemon Allowlist: Services that already enforce their own end-to-end TLS and token authentication are exempted via a declarative allowlist so WebSockets, gRPC streams, and HTTP/2 multiplexing operate without double-proxying.

Pillar 3: Google Cloud CodeMender & The 28,189-File Discovery Lesson

With the cloud organization and network ingress locked down, the third pillar focused on autonomous code security using Google Cloud CodeMender—an AI-powered security agent designed to proactively identify complex vulnerabilities and generate verified, root-cause remediation patches.

Running CodeMender across a multi-service Python and cloud-native repository surfaced a critical operational lesson that applies to every AI security tool on the market.

The Trap: Scanning 465 MB of Third-Party Virtual Environments

When we ran the initial discovery pass across the workspace with default settings, the scanner indexed 28,189 files totaling 465.45 MB.

The culprit? Most default discovery configurations exclude node_modules by default—and nothing else. In a modern Python and cloud engineering repository, that means your AI security agent spends 97% of its analysis budget inspecting:

• Local Python virtual environments (venv/, .venv/),
• Vendored open-source SDK repositories cloned into subdirectories for local reference,
• Symlinked third-party test fixtures.

Asking an AI security agent to reason over 26,400 files of third-party site-packages dilutes context windows, inflates scan latency, and buries real first-party vulnerabilities under noise.

The Solution: Scope Pruning for 100% First-Party Signal

By explicitly configuring discovery exclusion patterns (exclude_patterns) to ignore virtual environments (**/venv/**, **/.venv/**), vendored open-source SDK directories, and external symlinks prior to analysis:

With the scope pruned to the 1,786 first-party source files (12.45 MB) that we actually author and deploy, CodeMender delivered immediate, high-signal results:

1. Cross-Module Data-Flow Analysis: Traced untrusted request parameters across module boundaries to identify subtle injection and unsafe deserialization paths that traditional regex static analyzers miss.
2. Verified Root-Cause Remediation Diffs: Generated clean, minimal git diffs that fixed the underlying vulnerability without breaking existing API contracts or unit test suites.
3. Rapid Human Review Loop: Every proposed patch was reviewed, validated against the automated test suite, and committed in a single afternoon session.

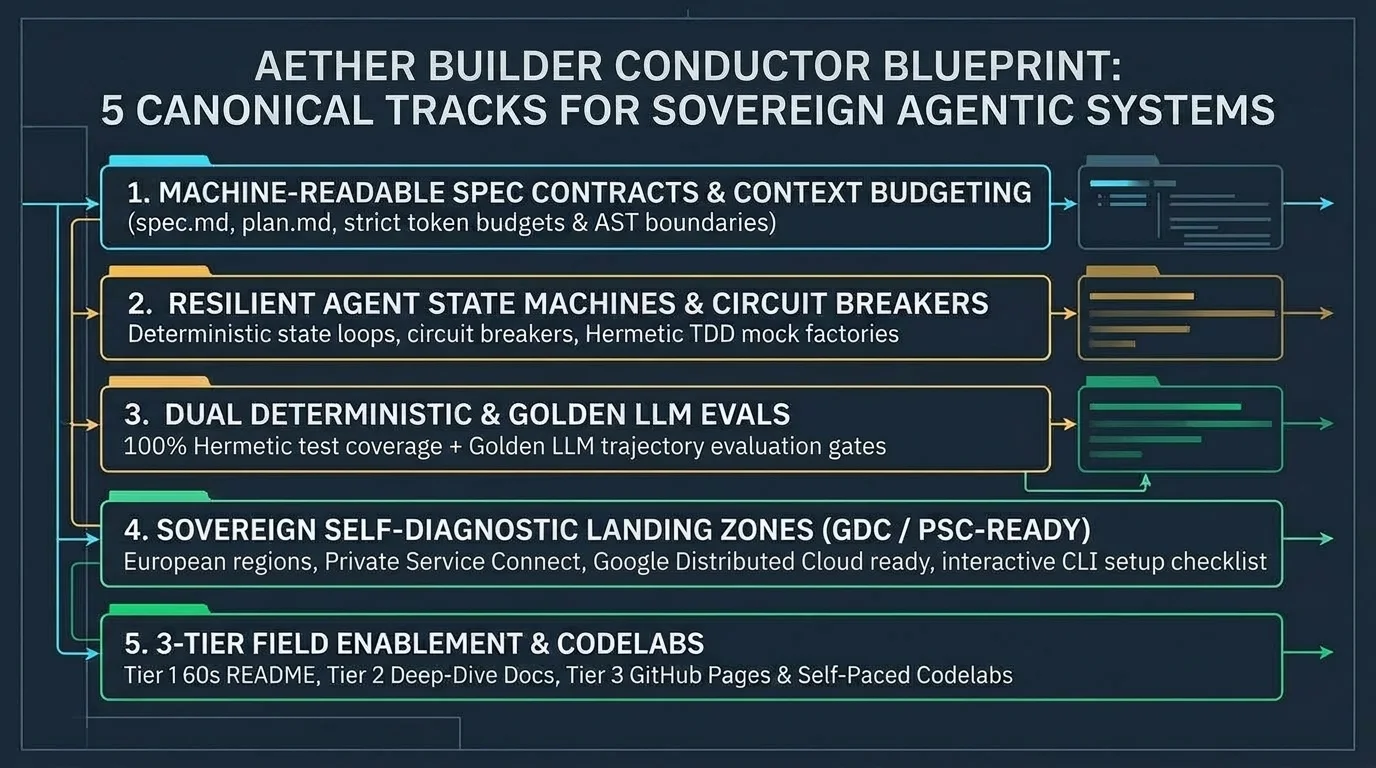

Pillar 4: The Aether Builder Conductor Blueprint — 5 Canonical Tracks for Sovereign Agentic Systems

Fixing a cloud organization or a repository once is a weekend chore; preventing architectural entropy across dozens of community and enterprise agentic repositories requires a deterministic engineering methodology.

That is where the Aether Builder Conductor Blueprint comes in: a spec-driven open-source methodology designed to scaffold, evaluate, harden, and document enterprise-grade, sovereign agentic systems. Instead of letting AI agents write ad-hoc glue code that drifts out of compliance, every repository is orchestrated through 5 Canonical Conductor Tracks stored directly in version control (conductor/tracks/<track_id>/).

The 5 Canonical Tracks

Track 1: Machine-Readable Spec Contracts & Context Budgeting

• The Plan is the Source of Truth: Every architectural module, security control, or feature iteration begins with machine-readable contracts (spec.md, plan.md, metadata.json, and index.md) committed before a single line of implementation code is written.
• Strict Context & AST Budgeting: Just as pruning 465.45 MB of venv noise down to 12.45 MB unlocked CodeMender’s precision, Track 1 enforces explicit token budgets, strict module boundaries, and declarative exclusion contracts so coding and security agents never hallucinate across unbounded context windows.

Track 2: Resilient Agent State Machines with Circuit Breakers

• Deterministic Execution Loops: Agentic workflows are modeled as explicit, finite state machines rather than open-ended prompt loops—complete with retry budgets, exponential backoff circuit breakers, and echo-loop prevention (MachineID fencing).
• 100% Hermetic Test Coverage & Mock Factories: Unit and CLI test suites are strictly forbidden from depending on ambient developer credentials (such as local Application Default Credentials) or live network endpoints. Every external cloud client is injected through exported factory interfaces (SetClientFactory(...)) backed by deterministic in-memory repositories or local emulators, enforcing a strict Red $\rightarrow$ Green $\rightarrow$ Refactor loop with 100% hermetic test coverage.

Track 3: Dual Deterministic & Golden LLM Evals

• Two-Tier Verification Gate: Traditional unit tests cannot catch prompt regressions, while LLM-only evaluations are too slow and non-deterministic to catch race conditions. Track 3 requires both:
  1. Deterministic Invariant Gate: Fast, 100% hermetic test suites verifying POSIX exit codes, strict --json output schemas, race-condition freedom (-race), and security header assertions.
  2. Golden LLM Evaluation Gate: Curated golden trajectory datasets scored by automated LLM-as-a-Judge rubrics to verify tool-calling accuracy, grounding fidelity, and policy compliance before any release tag is cut.

Track 4: Sovereign Self-Diagnostic Cloud Landing Zones (GDC / PSC-Ready)

• Self-Verifying <cli> setup Engines: Every shipped tool includes an interactive, self-diagnostic setup command that audits IAM bindings, service APIs, and network routes with visual terminal checklists ([✓], [✗], [!]), --dry-run idempotency, and copy-pasteable remediation hints.
• Sovereign-by-Default Topology: Engineered from day one for European digital sovereignty requirements—defaulting to European regions, routing all service-to-service traffic over Private Service Connect (PSC) endpoints with zero public internet traversal, and maintaining strict architectural compatibility with Google Distributed Cloud (GDC) air-gapped and sovereign deployments.

Track 5: 3-Tier Field Enablement & Codelabs

An enterprise architecture that cannot be understood in 60 seconds or reproduced in 30 minutes does not get adopted. Track 5 enforces zero-friction open-source distribution (multi-arch static binaries, Homebrew taps, SHA256-verified installers, and clean changelogs) paired with a 3-Tier Documentation Standard:

• Tier 1 (README.md): 60-second executive pitch, architecture badges, Mermaid data-flow diagram, 3-Step Quickstart (Install $\rightarrow$ Setup & Verify Cloud $\rightarrow$ Start), and a complete CLI Command Matrix.
• Tier 2 (docs/ Deep-Dive Hub): Dedicated architectural and operational runbooks (architecture-and-sync.md, setup-and-cloud.md, operations-and-audit.md).
• Tier 3 (Field Enablement & Codelabs): Automated GitHub Pages documentation portals paired with step-by-step, self-paced workshop Codelabs (docs/codelab.md) so field engineers and customers can validate the entire sovereign stack hands-on.

References & Official Documentation

• Google Cloud Architecture Framework: https://docs.cloud.google.com/architecture/framework
• Google Cloud CodeMender: https://cloud.google.com/security/codemender
• Beyond the Perimeter (Zero Trust & PQC Series): Why IP Firewalls Fail Against 2026 Threats and How Zero Trust Rewrites Enterprise Defense
